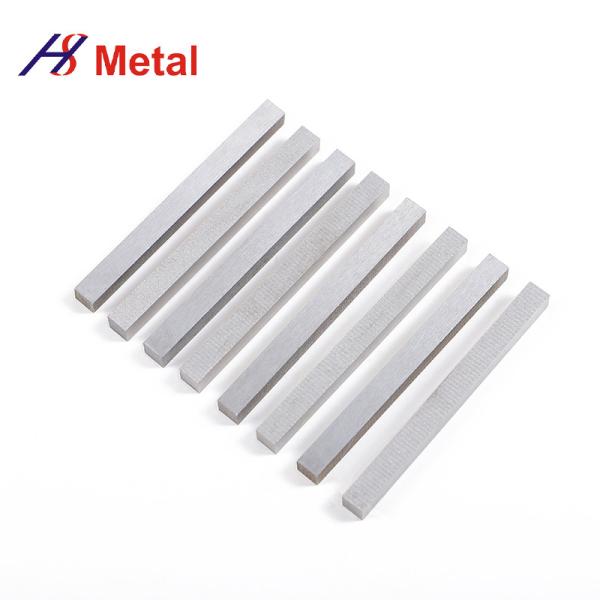

Low Thermal Expansion Tungsten Carbide Flat Stock Heat Resistance

Low Thermal Expansion Tungsten Flat Bar Heat Resistance

Main Characteristics:

High melting point (3410°C)

Low thermal expansion

High electrical resistance

Low vapor pressure

Good thermal conductivity

High density

Details

1. Material: tungsten
2. Purity:>=99.95%
3. Dia: 0.8mm Min

4. Surface: black, sintering, polishing,machining

Chemical Composition

Element	Mo	Mg	Fe	C	Al	N	Si	Ca	Ni	C
Concentration(%)	0.01	0.003	0.005	0.005	0.002	0.003	0.005	0.005	0.003	0.008
Purity(Metallic Base) W≥99.95%

Parameters

wholesale customized 99.95 % pure tungsten bars

Machining	Diameter	Diameter tolerance %	Max length, mm
Forging, Rotary swaging	1.6-20	±0.1	2000
	20-30	±0.1	1200
	30-60	±0.1	1000
	60-70	±0.2	800

Note: Your special request for wholesale customized 99.95 % pure tungsten bars will be available.

Atomic number	74
CAS number	7440-33-7
Atomic mass	183.84 [g/mol]
Melting point	3420 °C
Boiling point	5555 °C
Density at 20 °C	19.25 [g/cm3]
Crystal structure	Body-centered cubic
Coefficient of linear thermal expansion at 20 °C	4.410-6[m/(mK)]
Thermal conductivity at 20 °C	164 [W/(mK)]
Specific heat at 20 °C	0.13 [J/(gK)]
Electrical conductivity at 20 °C	18.2106[S/m]
Specific electrical resistance at 20 °C	0.055 [(mm2)/m]

Applications

Parts of the electric light source and electron tube
Heat elements of high-temperature furnace
Structures of high-temperature furnace
Contact of electrical appliance
Rare earth industry
Vacuum coating industry
