Metallurgy WCu Alloy W50Cu50 Copper Tungsten Bar Stock Electrical Conductivity

Ask Lasest Price
Model Number :	WCu Alloy Bar & Rod
Price :	Negitionable
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	1000sets/month
Delivery Time :	30 days after receiving down payment

Add to Cart

Product Details
Company Profile

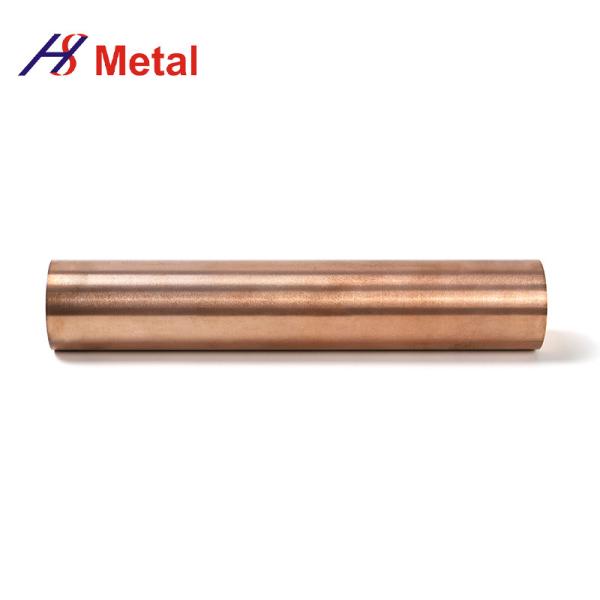

Metallurgy WCu Alloy W50Cu50 Copper Tungsten Bar Stock Electrical Conductivity

W50Cu50 Tungsten Alloy Products WCu Alloy Bar & Rod

Tungsten copper is widely used for electrode purposes. as it has high-temperature resistance, electric arc ablation, high intensity, than the major, conductive, thermal conductivity, and ease of machining.

Advantages:

High arc resistance combined with good electrical conductivity;
High thermal conductivity;
Low thermal expansion;

High-quality high sales tungsten copper alloy block can be customized

Parameters

Class	Chemical Composition (wt%)			Density	Hardness	Resistivity	IACS	Bending Strength
Class	Cu	Total Impurities≤	W	g/cm3 ≥	HB Kgf/mm2 ≥	μΩ.cm ≤	% ≥	MPa ≥
W50/Cu50	50±2.0	0.5	Balance	11.85	115	3.2	54	—
W55/Cu45	45±2.0	0.5	Balance	12.3	125	3.5	49	—
W60/Cu40	40±2.0	0.5	Balance	12.75	140	3.7	47	—
W65/Cu35	35±2.0	0.5	Balance	13.3	155	3.9	44	—
W70/Cu30	30±2.0	0.5	Balance	13.8	175	4.1	42	790
W75/Cu25	25±2.0	0.5	Balance	14.5	195	4.5	38	885
W80/Cu20	20±2.0	0.5	Balance	15.15	220	5	34	980
W85/Cu15	15±2.0	0.5	Balance	15.9	240	5.7	30	1080
W90/Cu10	10±2.0	0.5	Balance	16.75	260	6.5

Features

Tungsten-copper alloy has a wide range of applications, most of which are used in aerospace, aviation, electronics, electric power, metallurgy, machinery, sports equipment, and other industries. Secondly, it is also used to manufacture the contacts of high-voltage electrical switches and high-temperature components such as rocket nozzle throat liner and tail rudder, which are resistant to arc erosion, and also used as electrodes for electrical machining, high-temperature molds and other occasions requiring conductive and thermal conductivity and high-temperature use.

Applications

1. Arcing contacts and vacuum contacts in high and medium voltage breakers or vacuum interrupters

2. Electrodes in electric spark erosion-cutting machines

3. Electrodes for resistance welding.
